Precision engineering solutions for hydraulic systems and industrial applications come from a trusted manufacturer of hydraulic fittings and flanges, Z-Lok. These products are engineered to connect reliably, to keep leakages under control, to withstand high pressure and to have a long service life. We manufacture fittings and flanges in different sizes and shapes as per different industry requirements.
Z-Lok is a trusted and trusted Hydraulic Tube Fittings Manufacturer that provides precision fabricated tube fittings for the secure and leak-free hydraulic connection. The hydraulic tube fittings are capable of high pressure and vibration resistance, and can be used in hydraulic machinery, industrial equipment, construction systems and fluid power systems etc. where working conditions are harsh. Z-Lok fittings come in different sizes and configurations and deliver reliable performance and service life.
Specification Of Hydraulic Tube Fittings, Hydraulic Fittings
| STANDARD | DIN 2353/ ISO 8434-1 |
|---|---|
| MATERIAL | MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20 |
| SERIES | LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE |
| WORKING PRESSURE | (LOW) LL SERIES – 100 BAR |
| (MEDIUM)L SERIES – 100 BAR TO 500 BAR | |
| (HEAVY)S SERIES – 200 BAR TO 800 BAR | |
| SIZE RANGE | LL SERIES – 4LL TO 12LL |
| L SERIES – 6L TO 42L | |
| S SERIES – 6S TO 38S | |
| CONNECTIONS | TUBE TO TUBE , TUBE TO MALE THREAD , TUBE TO FEMALE THREAD , TUBE TO BUTT WELD , TUBE TO SOCKET WELD , TUBE TO JIC 37* , TUBE TO 24* CONE, TUBE TO SWIVEL END , TUBE TO ADJUSTBALE STANDPIPE |
| WELD NIPPLE TO MALE THREAD , WELD NIPPLE TO FEMALE THREAD , WELD NIPPLE TO BUTT WELD , WELD NIPPLE TO SOCKET WELD , WELD NIPPLE TO 24* CONE , WELD NIPPLE TO 37* JIC , WELD NIPPLE TO SWIVEL | |
| BODY TYPE | FORGED, BAR STOCK |
| ACCESSORIES | O-RING, DOWTY SEAL , COPPER WASHER , ED SEAL, CUTTING RING , NUT |
| O-RING & SEALS | NBR ( -35*C TO 100* C ) VITON (-25*C TO 200* C) , PTFE – (-60*C TO 240*) |
| SURFACE | CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED, |
| STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH | |
| TEMPERATURE | STEEL – (-40* C TO 120*C) ,STAINLESS STEEL – (-60*C TO 400*C) BRASS – (-60*C TO 175*C) |
| APPLICATIONS & INDUSTRIES | CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT |
| MATERIAL DESIGNATOR | STAINLESS STEEL – ASTM A 276 , ASTM 182 |
| STEEL – ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A. | |
| BRASS – ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771. |
Types Of Hydraulic Tube Fittings
STRAIGHT COUPLING
REDUCING COUPLING
EQUAL ELBOW
EQUAL TEE
STRAIGHT BULKHEAD
WELDING BULKHEAD
ELBOW BULKHEAD
MALE STUD COUPLING BSPP
MALE STUD COUPLING BSPT
MALE STUD COUPLING NPT
MALE STUD COUPLING WITH ED SEAL
MALE STUD COUPLING WITH WELD NIPPLE & ORING
MALE STUD ELBOW BSPT
MALE STUD ELBOW NPT
MALE STUD ELBOW BSPP
Adjustable Locknut Elbow
Assembled Adjustable Swivel Elbow
Adjustable 45 DEGREE Locknut Elbow
ADJUSTABLE STANDPIPE ELBOW
WELDING COUPLING
WELD ELBOW
FEMALE STUD COUPLING
BANJO ELBOW BSPP
BANJO TEE BSPP
DISTANCE PIECE ADAPTER
ADJUSTABLE MALE STANDPIPE BSPPT
ADJUSTABLE MALE STANDPIPE NPTM
SWIVEL UNION
SWIVEL UNION REDUCER
STANDPIPE REDUCING ADAPTOR
MALE RUN TEE BSPP
MALE BRANCH TEE BSPT
MALE BRANCH TEE NPT M
MALE RUN TEE NPT
ADJUSTABLE STANDPIPE RUN TEE.
ADJUSTABLE STANDPIPE BRANCH TEE
ADJUSTABLE LOCKNUT RUN TEE
ADJUSTABLE LOCKNUT BRANCH TEE 24 DEGREE FLARLESS BSPP
ADJUSTABLE LOCKNUT BRANCH TEE 24 DEGREE FLARLESS ISO
ADJUSTABLE LOCKNUT BRANCH TEE 24 DEGREE FLARLESS METRIC
ASSEMBLED ADJUSTABLE SWIVEL ELBOW WITH ED
CAP SINGLE FERRULE
PLUG WITH O-RING.
FEMALE PRESSURE GAUGE COUPLING
ELBOW MALE PIPE TO BEADED HOSE BARB FITTING
PLUG_18
VOMO_4LL
HYDRAULIC NUT
CUTTING RING (FERRULE)
PROGRESSIVE RING
BULKHEAD LOCKNOUT
ED SEAL
HYDRAULIC REDUCING WELD NIPPLE
HYDRAULIC WELD NIPPLE
Hydraulic Adapters
HEXAGON NIPPLE BSPP
HEXAGON NIPPLE BSPP X BSPT
HEXAGON NIPPLE BSPT X NPT
REDUCING HEX NIPPLE BSPP
ADAPTOR FEMALE X MALE BSPP
ADAPTOR FEMALE X MALE BSPP X NPT
ADAPTOR FEMALE X MALE NPT X BSPP
MALE BULKHEAD BSPP
FEMALEMALE ADAPTOR NPT
REDUCING BUSH BSPP
BSPP HEXAGON SOCKET
MALE X MALE 90DEG ELBOW
MALE X MALE EQUAL TEE
HEXAGON PLUG BSPP
HEXAGON PLUG CONE SEAT BSPP
HEXAGON FLANGED PLUG BSPP
SOCKET HEAD PLUG BSPT
SOCKET HEAD PLUG BSPP (WITH FPM O RING)
FEMALE BULKHEAD BSPP
Hydraulic Swivel Fittings
SWIVEL FEMALE X MALE ADAPTOR
SWIVEL FEMALE X MALE 90DEG ELBOW
SWIVEL FEMALE X SWIVEL FEMALE ADAPTOR
REDUCING HEX NIPPLE BSPP
SWIVEL FEMALE X FEMALE 90 DEG ELBOW
SWIVEL FEMALE X FEMALE EQUAL TEE
Z-Lok is a trusted Hydraulic SAE Flanges Manufacturer offering high-quality flanges designed for reliable hydraulic piping and fluid connection applications. Our SAE flanges are manufactured with precision to provide secure connections, excellent durability, and resistance to high pressure and vibration. Suitable for hydraulic systems, industrial machinery, construction equipment, and heavy-duty applications, Z-Lok SAE flanges are available in various sizes and configurations to meet different system requirements.
Types Of SAE Flange
SAE SPLIT FLANGE
SAE MONO FLANGE
SAE BUTT WELD FLANGE
SAE SOCKET WELD FLANGE
SAE THREADED FLANGE
SAE BLIND FLANGE
SAE BLANKING PLATE
SAE CETOP FLANGE
SAE 90 DEGREE BUTTWELD FLANGE
SAE WELD NOZZLE FLANGE
ISO 6164 SQUARE FLANGE
SAE T-BLOCK FLANGE
O-RING FACE SAE FLANGE
FLAT FACE SAE FLANGE
SAE BUTT WELD ADAPTER
SHA SHB HYDRAULIC FLANGE
SAE SOCKT WELD ADAPTER
SAE THREADED FLANGE ADAPTER
SAE SOCKET WELD FLANGE SET
SAE 90 DEGREE WELD ADAPTER
SAE CLOSER FLANGE
SAE 90 DEGREE JIC FLANGE
SAE THREADED JIC 37 DEGREE FLANGE
SAE 90 DEGREE FLANGE WITH 24 DEGREE DIN 3901
SAE BUTT WELD FLANGE SET
LOCKING SHEET
SAE PLUG
SAE UP SIDE FLANGE WELDED
SAE ADAPTER FLANGE WITH TEST POINT
SAE ADAPTER FLANGE
SAE COUNTER FLANGE
SAE ADAPTER SHEET
SAE SUCTION FLANGE COUPLING
SAE 45 DEGREE FLANGE
CETOP 90 DEGREE BUTT WELD FLANGE
FLANGE CONNECTION STRAIGHT 24 DEGREE DIN 3901
4 HOLE STARIGHT FLANGE
STRAIGHT FLANGE CONENCTION UN ORS
FLARE SAE FLANGE
OVAL FLANGE
SAE SPLIT FLANGE FLAT TYPE
Material Specification Chart Of Hydraulic SAE Flanges
| DESIGN | SAE J518 C / ISO 6162 / ISO 6164 / JIS B2291 |
|---|---|
| Material | CS, SS 304, SS 316, SS 316 TI, ALLOY STEEL, DUPLEX, SUPER DUPLEX, INCONEL, MONEL, HASTELLOY, SMO 254, 904 L, TITANIUM |
| WORKING PRESSURE | CS, SS 304, SS 316, SS 316 TI, ALLOY STEEL, DUPLEX, SUPER DUPLEX, INCONEL, MONEL, HASTELLOY, SMO 254, 904 L, TITANIUM |
| CODE | CODE 61 FLANGE (3000 PSI) & CODE 62 FLANGE (6000 PSI) |
| SIZE RANGE | 3/8″ (DN 10) TO 5″ (DN 125) |
| CONNECTIONS | BUTT WELD, SOCKET WELD, THREADED (BSPP, NPT, METRIC, JIC) |
| BODY TYPE | FORGED, BAR STOCK |
| FLANGE ACCESSORIES | O-RING, BOLT, NUT, WASHER |
| O-RING MATERAL | NITRILE, BUNA 90 SHORE, VITON 85-90 SHORE |
| BOLTS MATERIAL | HIGH TENSILE 8.8 GR, 10.9 GR, 12.9 GR, SS 304, SS316 |
| SURFACE | CARBON STEEL – BLACK PHOSPHATED, TRIVALENT ZINC PLATED, STAINLESS STEEL – ELECTROPLATING, NATURAL FINISH |
| APPLICATIONS | INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT |
Z-LOK is a trusted 37° Flare Fittings Manufacturer, providing superior quality flare fittings designed for safe and leak-free hydraulic and instrumentation connections. Precision manufactured and quality-tested, our 37° flare fittings offer high dimensional accuracy, reliability, and durability, even under extreme operating conditions and high pressure. Available in a variety of sizes, configurations, and materials, Z-LOK supplies reliable flare fittings with a 37° angle for industrial, hydraulic, automotive and fluid-controls systems.
Types Of 37° Flare Fittings
37° Flare Female Connector
37° Flare JIC Male Connector
37° Flare Elbow
37° Flare Male Elbow
37° Flare Female Elbow
37° Flare Union
37° Flare Union Cross
37° Flare Male Branch Tee
37° Flare Male Run Tee
37° Flare Bulkhead Union
37° Flare Weld Bulkhead Union
37° Flare Bulkhead Union Elbow
37° Flare Nut
37° Flare Tube Plug
37° Flare Sleeve
37° Flare Bulkhead Locknut
37° Flare Bulkhead Female Connector
37° Flare Tube Cap
Material Available of 37 Degree Fitting
Specification of JIC 37 Degree Flare Fittings
| 37 Degree Flare Standard | SAE J514 / ISO 8434-2 |
|---|---|
| Material | CS, MS, SS 304L, SS 304, SS 316L, SS 316, SS 316Ti (1.4571), Copper, Brass, Super Duplex, Duplex, Alloy 20, Monel, Inconel, 904L, Hastelloy, Titanium, 6MO, Aluminium |
| 37 Degree Flare Working Pressure | 100 Bar to 800 Bar |
| Size Range | 6 MM to 42 MM, 1/8″ JIC to 2″ JIC |
| Body Type | Forged, Bar Stock |
| 37 Degree Flare Accessories | O-Ring, Dowty Seal, Copper Washer, ED Seal, Cutting Ring, Nut |
| O-Ring & Seals | NBR (-35°C to 100°C), Viton (-25°C to 200°C), PTFE (-60°C to 240°C) |
| 37 Degree Flare Surface | Carbon Steel – Trivalent Zinc Plated, Yellow Plating, Black Phosphated Stainless Steel – Export Bright Finish, Short Blasted Finish, Electroplated Finish |
| Temperature | Steel – (-40°C to 120°C), Stainless Steel – (-60°C to 400°C), Brass – (-60°C to 175°C) |
| Equivalent Brands | Parker, Hy-Lok, DK-Lok, Stauff, Hydac, Voss |
| 37 Degree Flare Applications & Industries | Construction Equipment, Drilling Platforms, Hydro Power Plants, Machine Tools, Railway Technology, Shipbuilding, Wind Turbine, Mobile Hydraulic Equipment, Mining, Stationary Hydraulic Equipment, Industrial Hydraulics, Injection Moulding Machinery, Aluminium Die-Casting Machinery, Sintering Machinery, Steel Mills, Hydraulic Presses, Paper Processing, Mobile Hydraulics, Building Machinery, Agricultural Forestry, Lifting & Material Handling Equipment |
| Material Designator | Stainless Steel – ASTM A276, ASTM A182 Steel – ASTM A108/A105, JIS G4051 S20C, S45C, G3201 SF440A Brass – ASTM B16 UNS C36000, ASTM B282 Alloy 37700, JIS H3250 C3604, C3771, JIS H3250 C3771 |

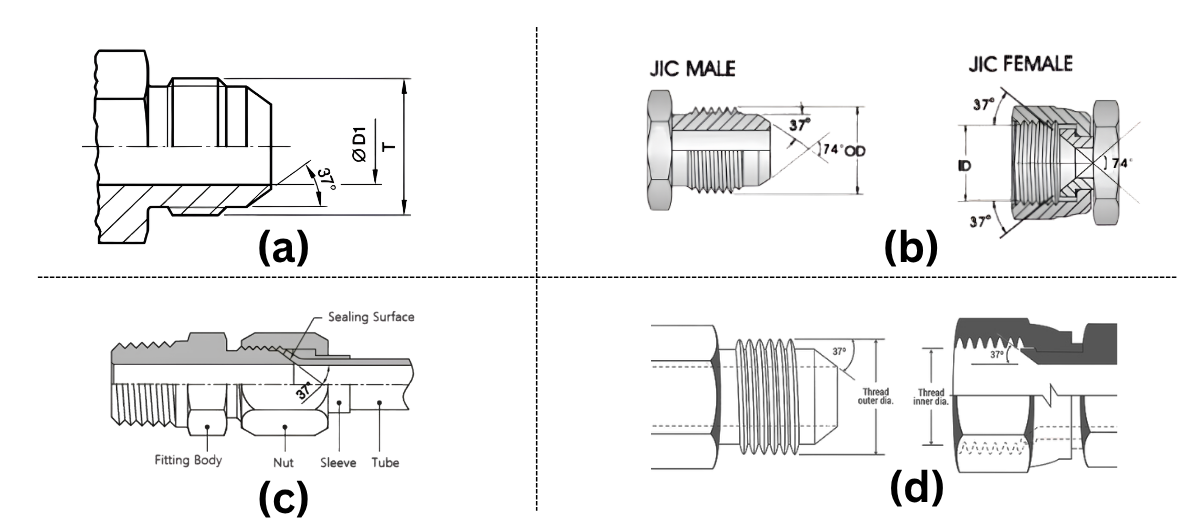

37 Degree Flare Fittings Dimensions Chart, Diagram
An 37 Degree Flare Fittings Dimensions
| 37 Degree Flare Dash size | Inch size | 37 Degree Flare Thread Size | Male Thread O.D. (in) | Female thread O.D (in) | ||
|---|---|---|---|---|---|---|
| -2 | 1/8 | 5/16 – 24 | 5/16 | 0.031 | 9/32 | 0.027 |
| -3 | 3/16 | 3/8 – 24 | 3/8 | 0.038 | 11/32 | 0.034 |
| -4 | 1/4 | 7/16 – 20 | 7/16 | 0.044 | 13/32 | 0.039 |
| -5 | 5/6 | 1/2 – 20 | 1/2 | 0.050 | 15/32 | 0.045 |
| -6 | 3/8 | 9/16 – 18 | 9/16 | 0.056 | 17/32 | 0.051 |
| -8 | 1/2 | 3/4 – 16 | 3/4 | 0.075 | 11/16 | 0.069 |
| -10 | 5/8 | 7/8 – 14 | 7/8 | 0.088 | 13/16 | 0.081 |
| -12 | 3/4 | 1 1/16 – 12 | 11/16 | 1.006 | 1 | 0.098 |
| -14 | 7/8 | 1 3/16 – 12 | 1 3/16 | 1.019 | 1 1/8 | 1.010 |
| -16 | 1 | 1 5/16 -12 | 1 5/16 | 1.031 | 1 1/4 | 1.023 |
| -20 | 1 1/4 | 1 5/8 – 12 | 1 5/8 | 1.063 | 1 9/16 | 1.054 |
| -24 | 1 1/2 | 1 7/8 – 12 | 1 7/8 | 1.088 | 1 13/16 | 1.079 |
| -32 | 2 | 2 1/2 – 12 | 2 1/2 | 2.050 | 2 7/16 | 2.042 |
Sizes of 37 Degree Flare Tube Fittings
| 37 Degree Flare Size | Tube O.D. | T | T | ||
|---|---|---|---|---|---|
| mm | inch | Major thread mm | UN/ UNF | D1 mm | |
| 4 | 6 | 1/4 | 11.00 | 7/16-20 | 4.05 |
| 5 | 8 | 5/16 | 12.05 | 1/2-20 | 6.00 |
| 6 | 10 | 3/8 | 14.00 | 9/16-18 | 7.05 |
| 8 | 12 | 1/2 | 19.00 | 3/4-16 | 10.00 |
| 10 | 14, 15, 16 | 5/8 | 22.00 | 7/8-14 | 12.05 |
| 12 | 18, 20 | 3/4 | 27.00 | 1 1/16-12 | 15.05 |
| 14 | 22 | 7/8 | 30.00 | 1 3/16-12 | 18.00 |
| 16 | 25 | 1 | 33.00 | 1 5/16-12 | 21.05 |
| 20 | 28, 30, 32 | 1 1/4 | 41.00 | 1 5/8-12 | 27.05 |
| 24 | 35, 38 | 1 1/2 | 47.05 | 1 7/8-12 | 33.00 |
| 28 | 42 | 1 3/4 | 57.00 | 2 1/4-12 | 39.00 |
| 32 | – | 2 | 63.05 | 2 1/2-12 | 45.00 |
Torque of 37 Degree Flare Fittings
| 37 Degree Flare Thread Size | Assembly Torque (ft-lb) | Swivel Nut or Hose FFWR | Assembly Torque (in-lb) | Tube Connection FFWR |
|---|---|---|---|---|
| 2 | 2 – 4 | N/A | 35 – 45 | N/A |
| 3 | 5 – 7 | N/A | 65 – 75 | N/A |
| 4 | 11 – 13 | 2 | 130 – 150 | 2 |
| 5 | 14 – 16 | 2 | 165 – 195 | 2 |
| 6 | 20 – 22 | 1.25 | 235 – 265 | 1.5 |
| 8 | 43 – 47 | 1 | 525 – 575 | 1.5 |
| 10 | 55 – 65 | 1 | 650 – 750 | 1.5 |
| 12 | 80 – 90 | 1 | 950 – 1050 | 1.25 |
| 14 | 100 – 110 | 1 | 1200 – 1300 | 1 |
| 16 | 115 – 125 | 1 | 1400 – 1500 | 1 |
| 20 | 160 – 180 | 1 | 1900 – 2100 | 1 |
| 24 | 185 – 215 | 1 | 2250 – 2550 | 1 |
| 32 | 250 – 290 | 1 | 3000 – 3400 | 1 |
Sae 37 Degree Flare Fittings Pressure Rating
| 37 Degree Flare Thread Size | 37 Degree Flare Working Pressures | ||||
|---|---|---|---|---|---|
| Nom Inch Tube OD | SEA J1926/3/ ISO 11926-3 O-Ring Port and SEA J514 Flared Tube End Thread Size (Notes 1&2) | 37 Degree Unions, Flared Tube Ends and Bulkheads | 37 Degree Female Swivels. | ||
| psi | MPa | psi | MPa | ||
| 1/8 | 5/16-24 UNF | 5,000 | 34.05 | 5,000 | 34.05 |
| 3/16 | 3/8-24 UNF | 5,000 | 34.05 | 5,000 | 34.05 |
| 1/4 | 7/16-20 UNF | 5,000 | 34.05 | 4,500 | 31 |
| 5/16 | 1/2-20 UNF | 5,000 | 34.05 | 4,000 | 27.05 |
| 3/8 | 9/16-18 UNF | 5,000 | 34.05 | 4,000 | 27.05 |
| 1/2 | 3/4-16 UNF | 4,500 | 31 | 4,000 | 27.05 |
| 5/8 | 7/8-14 UNF | 3,500 | 24 | 3,000 | 21 |
| 3/4 | 1-1/16-12 UN | 3,500 | 24 | 3,000 | 21 |
| 7/8 | 1-3/16-12 UN | 3,000 | 21 | 2,500 | 17 |
| 1 | 1-5/16-12 UN | 3,000 | 21 | 2,500 | 17 |
| 1 1/4 | 1-5/8-12 UN | 2,500 | 17 | 2,000 | 14 |
| 1 1/2 | 1-7/8-12 UN | 2,000 | 14 | 1,500 | 10.05 |
| 2 | 2-1/2-12 UN | 1,500 | 10.05 | 1,125 | 8 |
| 37 Degree Flare Thread Size | 37 Degree Flare Working Pressures | ||
|---|---|---|---|
| Nom Inch Pipe O.0D.0 | Dryseal Pipe Thread (NPTF) Male and Female | Fittings With NPTF Pipe Threads | |
| psi | MPa | ||
| 1/8 | 1/8-27 | 5,000 | 34.05 |
| 1/4 | 1/4-18 | 4,000 | 27.05 |
| 3/8 | 3/8-18 | 3,000 | 21 |
| 1/2 | 1/2-14 | 3,000 | 21 |
| 3/4 | 3/4-14 | 2,500 | 17 |
| 1 | 1-11-1/2 | 2,000 | 14 |
| 1 1/4 | 1-1/4-11-1/2 | 1,150 | 8 |
| 1 1/2 | 1-1/2-11-1/2 | 1,000 | 7 |
| 2 | 2-11-1/2 | 1,000 | 7 |
Jic Tube Fittings Equivalent Material Grade
| DESCRIPTION | BARSTOCK | FORGING | UNS GRADE | CASTING |
|---|---|---|---|---|
| Carbon Steel | A105 | A105 | K30504 | A216 WCB |
| Low Temp Carbon | A350 LF2 | A350 LF2 | K03011 | A352 LCB |
| High Yield Steel | A694 F60 | A694 F60 | K03014 | – |
| 3 1/2 Nickel Steel | A350 LF3 | A350 LF3 | K32025 | A352 LC3 |
| 5 Chrome, 1/2 Moly | A182 F5 | A182 F5 | K41545 | A217 C5 |
| 1 1/4 Chrome, 1/2 Moly | A182 F11 | A182 F11 | K11597 | A217 WC6 |
| 2 1/4 Chrome, 1 Moly | A182 F22 | A182 F22 | K21590 | A217 WC9 |
| 9 Chrome, 1 Moly | A182 F9 | A182 F9 | K90941 | A217 WC6 |
| 13 Chrome | A276 or A479 410 | A182 F6A | S41000 | A351 CA15 |
| 304 | A276 or A479 304 | A182 F304 | S30400 | A351 CF8 |
| 304L | A276 or A479 304L | A182 F304L | S30403 | A351 CF3 |
| 316 | A276 or A479 316 | A182 F316 | S31600 | A351 CF8M |
| 316L | A276 or A479 316L | A182 F316L | S31603 | A351 CF3M |
| 317L | A276 or A479 317L | A182 F317L | S31703 | A351 CG8M |
| 321 | A276 or A479 321 | A182 F321 | S32100 | – |
| 347 | A276 or A479 347 | A182 F347 | S34700 | A351 CF8C |
| 17-4PH | – | A564 630 | S17400 | – |
| Alloy 400 | B164 N04400 | B564 N04400 | N04400 | A494 M35-1 |
| Alloy K500 | B865 N05500 | – | N05500 | – |
| Alloy 800 | B408 N08800 | B564 N08810 | N08800 | – |
| Alloy 825 | B425 N08825 | – | N08825 | – |
| Alloy 600 | B166 N06600 | B564 N06600 | N06600 | A494 CY40 |
| Alloy 625 | B446 N06625 | B564 N06625 | N06625 | A494 CW 6MC |
| Alloy B2 | B335 N10665 | B564 N10665 | N10665 | A494 N 12MV |
| Alloy C | – | – | N10002 | A494 CW6M |
| Alloy C22 | B574 N06022 | B574 N06022 | N06022 | A494 CX2MW |
| Alloy C276 | B574 N10276 | B564 N10276 | N10276 | A494 CW12 MW |
| 22% Duplex | A276 or A479 S31803 | A182 F51 | S31803 | A890 Gr 4A |
| 25% Duplex | A276 or A479 S32750 or 60 | A182 F53 | S32750 or 32760 | A890 Gr 6A |
| 254SMO | A182 F44 | A182 F44 | S31254 | A351 CK3MCuN |
| 904L | B649 N08904 | B625 N08904 | N08904 | – |
| Titanium | B348 Gr 2 | B381 F2 | R50400 | B367 C2 |
Pipe Thread Description :
| 37 Degree Flare Thread Type | Code |
|---|---|
| ISO Tapered Thread (BSPT) | RT |
| NPT Thread | N |
| SAE/MS Straight Thread | SE |
