Z-Lok is a trusted Hydraulic SAE Flanges Manufacturer offering high-quality flanges designed for reliable hydraulic piping and fluid connection applications. Our SAE flanges are manufactured with precision to provide secure connections, excellent durability, and resistance to high pressure and vibration. Suitable for hydraulic systems, industrial machinery, construction equipment, and heavy-duty applications, Z-Lok SAE flanges are available in various sizes and configurations to meet different system requirements.
Types Of SAE Flange

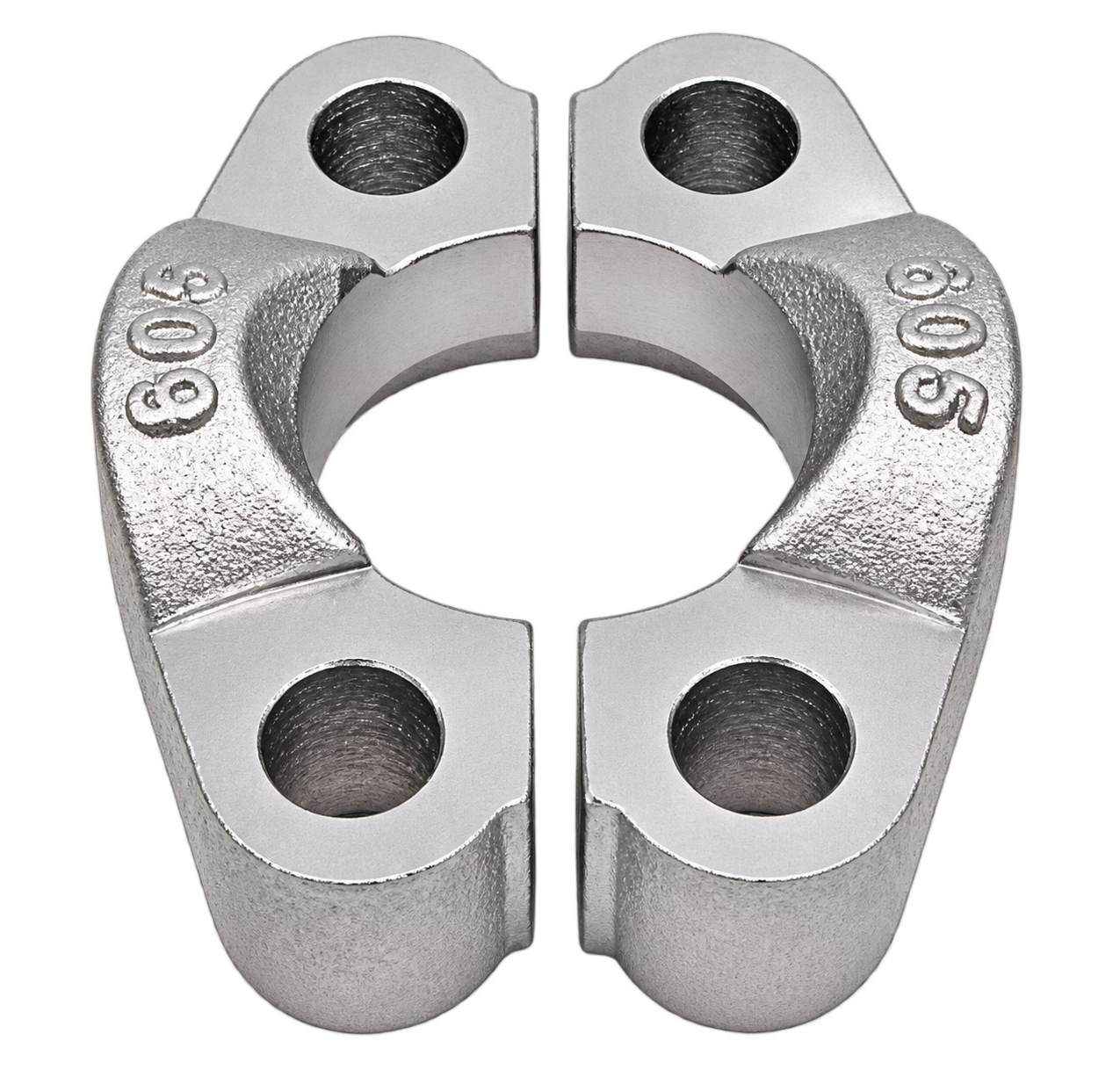

SAE SPLIT FLANGE
SAE MONO FLANGE
SAE BUTT WELD FLANGE
SAE SOCKET WELD FLANGE
SAE THREADED FLANGE
SAE BLIND FLANGE
SAE BLANKING PLATE
SAE CETOP FLANGE
SAE 90 DEGREE BUTTWELD FLANGE
SAE WELD NOZZLE FLANGE
ISO 6164 SQUARE FLANGE
SAE T-BLOCK FLANGE
O-RING FACE SAE FLANGE
FLAT FACE SAE FLANGE
SAE BUTT WELD ADAPTER
SHA SHB HYDRAULIC FLANGE
SAE SOCKT WELD ADAPTER
SAE THREADED FLANGE ADAPTER
SAE SOCKET WELD FLANGE SET
SAE 90 DEGREE WELD ADAPTER
SAE CLOSER FLANGE
SAE 90 DEGREE JIC FLANGE
SAE THREADED JIC 37 DEGREE FLANGE
SAE 90 DEGREE FLANGE WITH 24 DEGREE DIN 3901
SAE BUTT WELD FLANGE SET
LOCKING SHEET
SAE PLUG
SAE UP SIDE FLANGE WELDED
SAE ADAPTER FLANGE WITH TEST POINT
SAE ADAPTER FLANGE
SAE COUNTER FLANGE
SAE ADAPTER SHEET
SAE SUCTION FLANGE COUPLING
SAE 45 DEGREE FLANGE
CETOP 90 DEGREE BUTT WELD FLANGE
FLANGE CONNECTION STRAIGHT 24 DEGREE DIN 3901
4 HOLE STARIGHT FLANGE
STRAIGHT FLANGE CONENCTION UN ORS
FLARE SAE FLANGE
OVAL FLANGE
SAE SPLIT FLANGE FLAT TYPE
Material Specification Chart Of Hydraulic SAE Flanges
| DESIGN | SAE J518 C / ISO 6162 / ISO 6164 / JIS B2291 |
|---|---|
| Material | CS, SS 304, SS 316, SS 316 TI, ALLOY STEEL, DUPLEX, SUPER DUPLEX, INCONEL, MONEL, HASTELLOY, SMO 254, 904 L, TITANIUM |
| WORKING PRESSURE | CS, SS 304, SS 316, SS 316 TI, ALLOY STEEL, DUPLEX, SUPER DUPLEX, INCONEL, MONEL, HASTELLOY, SMO 254, 904 L, TITANIUM |
| CODE | CODE 61 FLANGE (3000 PSI) & CODE 62 FLANGE (6000 PSI) |
| SIZE RANGE | 3/8″ (DN 10) TO 5″ (DN 125) |
| CONNECTIONS | BUTT WELD, SOCKET WELD, THREADED (BSPP, NPT, METRIC, JIC) |
| BODY TYPE | FORGED, BAR STOCK |
| FLANGE ACCESSORIES | O-RING, BOLT, NUT, WASHER |
| O-RING MATERAL | NITRILE, BUNA 90 SHORE, VITON 85-90 SHORE |
| BOLTS MATERIAL | HIGH TENSILE 8.8 GR, 10.9 GR, 12.9 GR, SS 304, SS316 |
| SURFACE | CARBON STEEL – BLACK PHOSPHATED, TRIVALENT ZINC PLATED, STAINLESS STEEL – ELECTROPLATING, NATURAL FINISH |
| APPLICATIONS | INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT |
